400 m² Commercial Centre (2 storeys, cantilever)

400 m² Commercial Centre (2 storeys, cantilever). LSTK + Sandwich Panels. Floor height 3.5 m

Overview

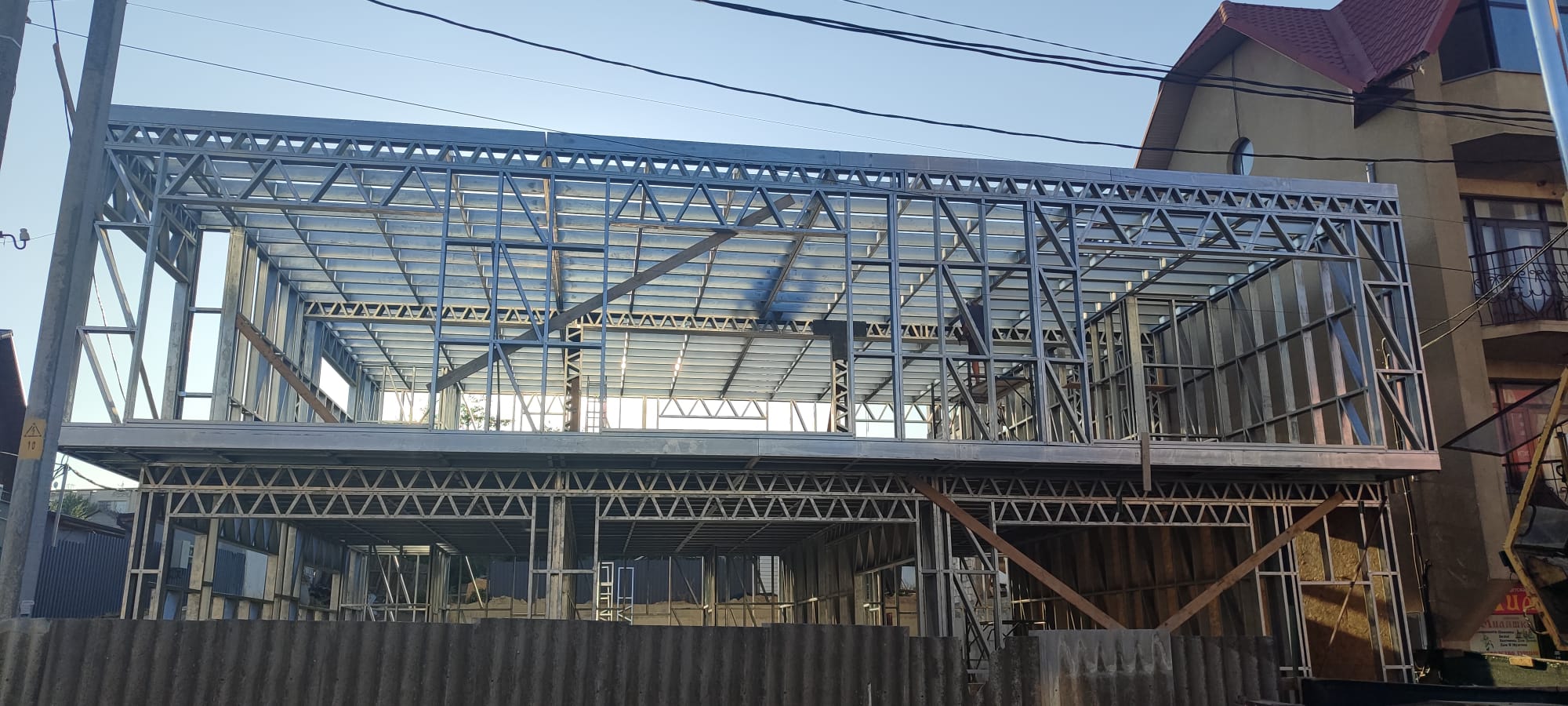

Two-storey LSTK commercial centre with a cantilevered volume, façade for sandwich panels (MW/PIR/PUR). Total area 400 m² (~200 m² per floor). Floor-to-floor 3.5 m. This package is shell only — no MEP, no fire systems.

Use Cases
Retail, offices, showroom, service areas; tenant-split ready.

Key Advantages

• Fast shell erection and clean site logistics.

• High geometric accuracy for sandwich-panel façades.

• Flexible open-space or tenant block layouts.

• Production and installation under EN 1090-1, EN 1090-4, ISO 9001.

Planning & Structure

• Ground: retail/showroom, entrance group, storage, WCs (per brief).

• First: open space/offices, meeting rooms, support areas.

• Cantilever: façade overhang per structural design.

• Frame: LSTK S350GD, Zn275; bracing/rigid frames for stability.

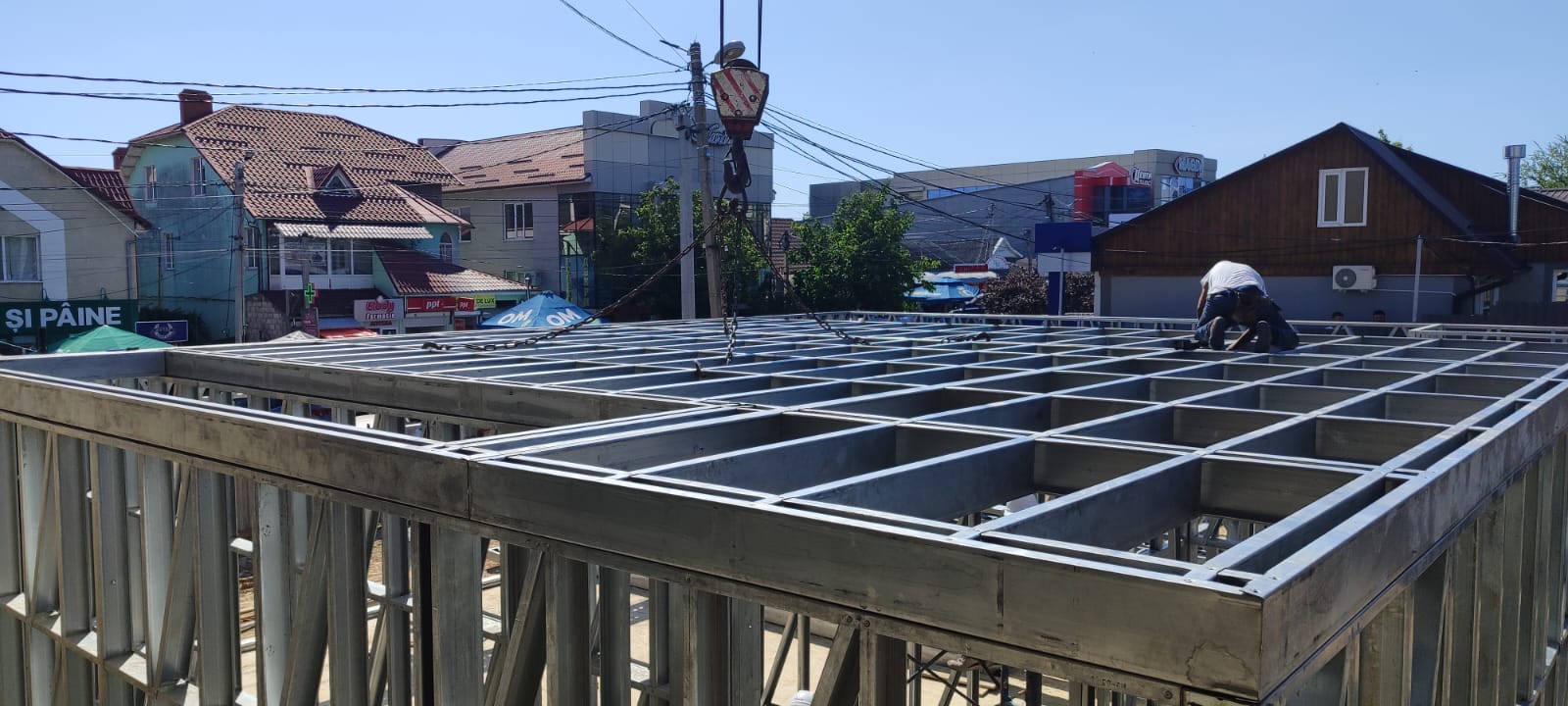

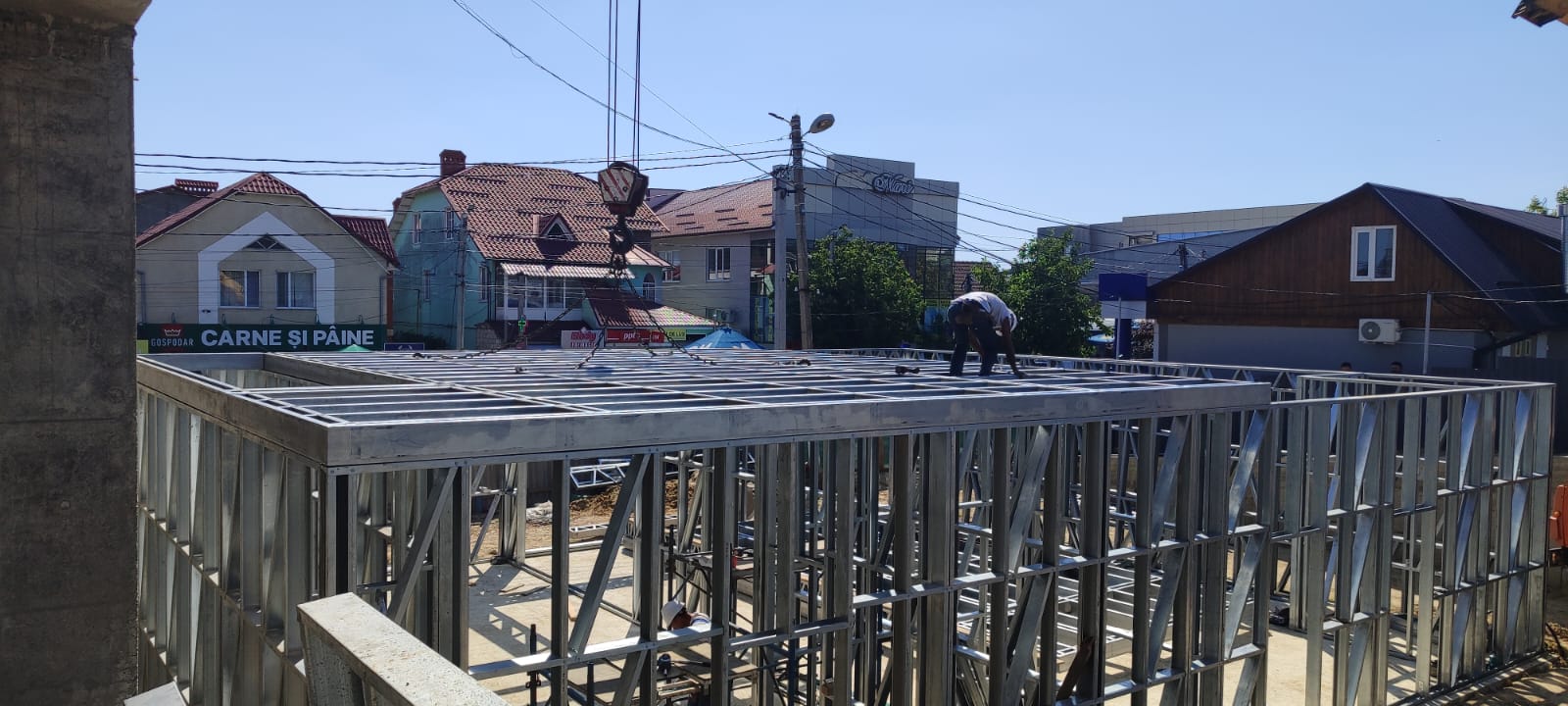

• Floors: LSTK joists + deck/composite (per loads).

• Foundation: slab or piled raft per geotechnical survey.

• Envelope: sandwich panels with flashings; concealed/exposed joints.

• Roof: pitched/flat; 250–300 mm insulation; internal/external drainage.

• Storefronts/doors to brief.

Timeline & Scope (no MEP, no fire)

• Manufacturing: 1 week.

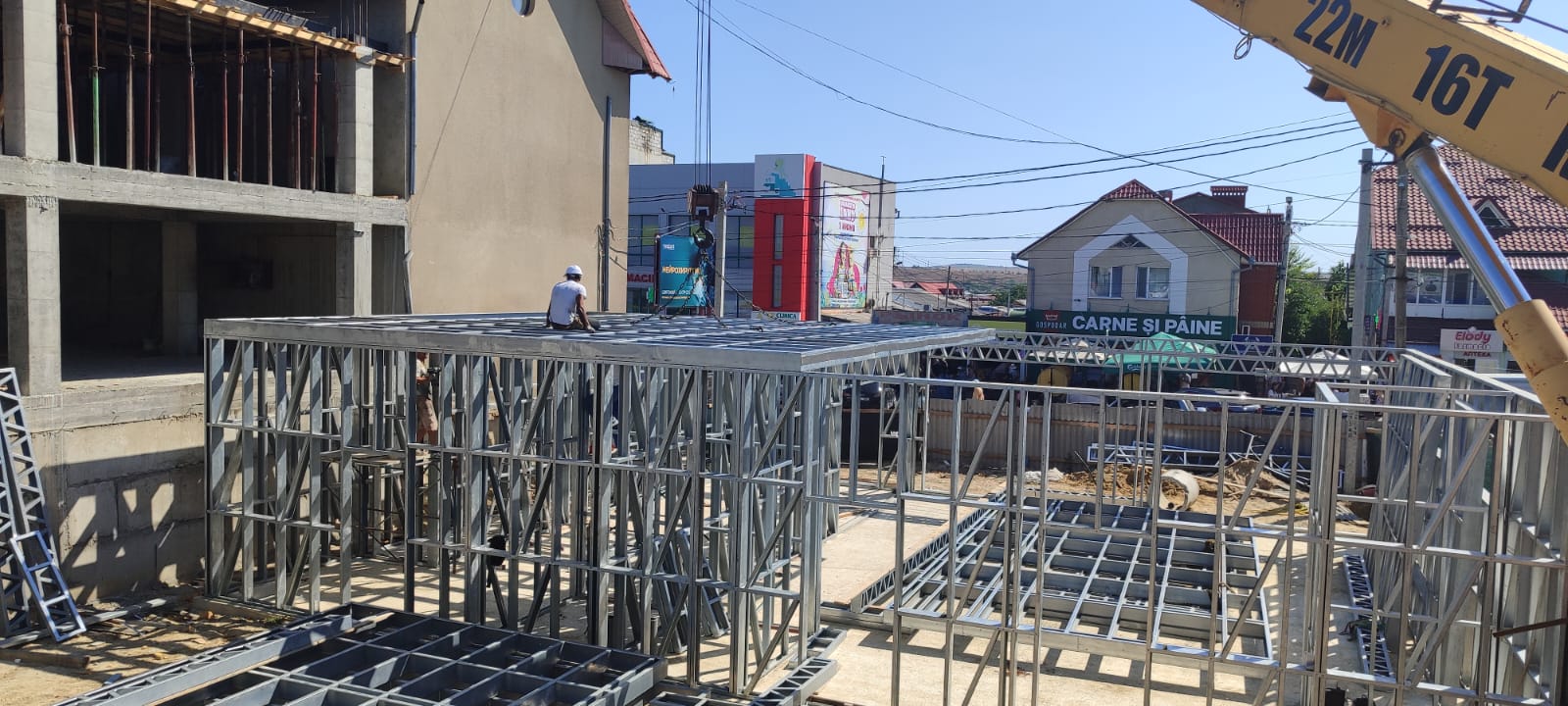

• On-site assembly (shell): 1.5 months (~6 weeks).

• Shell package: steel frame, floors, roof, sandwich-panel façade, entrance groups.

MEP/fire systems can be added as a separate stage if required.

Export & Logistics
Deliveries across Ukraine & EU. Documentation, site supervision/install teams.
