One-storey LGSF Duplex with Terrace, 320 m²

Overview

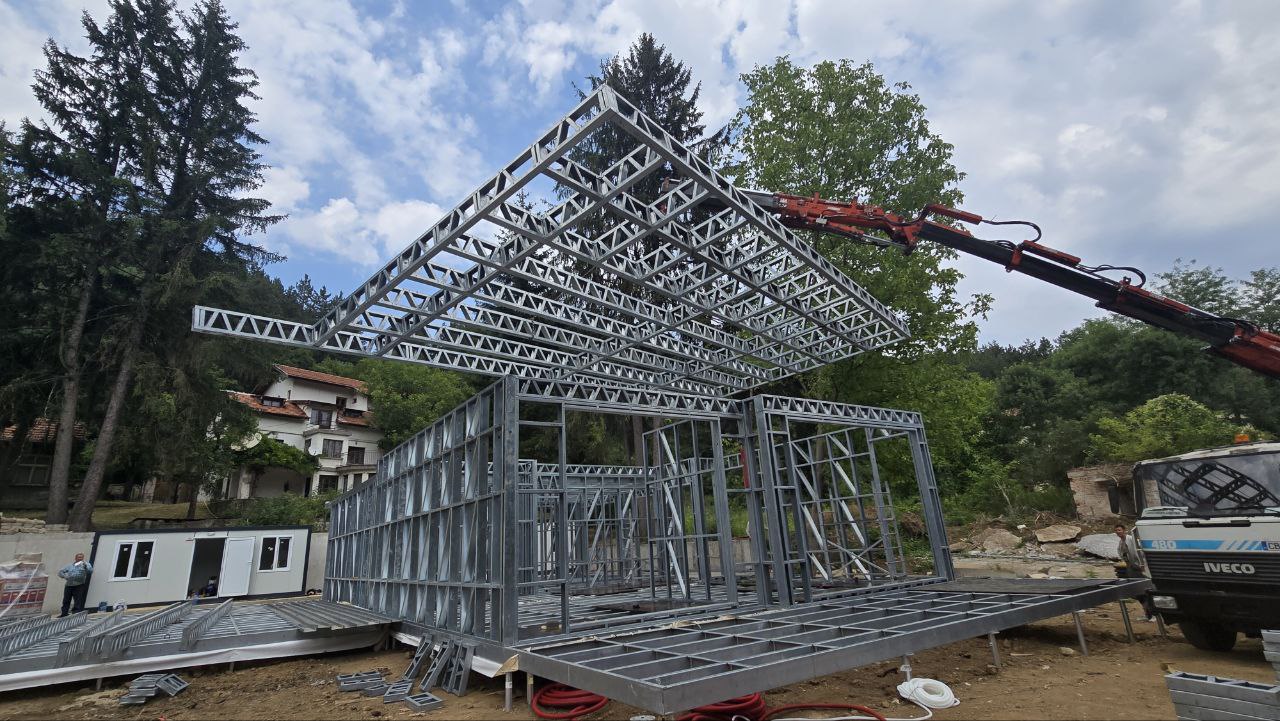

A modern single-storey duplex built with Light Steel Thin-walled Structures (LSTK). Total footprint 320 m² (approx. 160 m² per unit). Efficient layout, energy-saving envelope, fast assembly and clean site logistics.

Key Benefits

Fast erection: structural shell from 4–6 weeks after site start.
Dimensional accuracy and flat surfaces thanks to LSTK.
Energy efficiency: 200–250 mm mineral wool, thermal-bridge-free nodes.
Flexible internal layout and finish options.
Certified production: EN 1090-1, EN 1090-4, ISO 9001.

Indicative Layout (per unit)

3 bedrooms, 2 bathrooms, open-plan kitchen-living with terrace access.
Utility/laundry, wardrobe, entrance lobby.
Open terrace 20–30 m² (optional canopy/pergola).

Structure & Materials

Frame: LSTK, galvanized steel S350GD, Zn275.
External walls: 200 mm MW + façade systems (render, ventilated cladding, metal/siding).
Roof: pitched or flat; 250–300 mm insulation; finish per choice.
Partitions: LSTK + acoustic insulation.
Windows: Low-E energy-efficient glazing.
Foundation: slab or piled raft (per geotechnical survey).

MEP & Options

Heating: heat pump/gas/electric; underfloor heating.
Ventilation with heat recovery (option).
PV and backup power (option).
Smart home, security, CCTV (option).

Timeline & Packages

Design: 2–4 weeks. Manufacturing: 1 week. Shell installation: from 4–6 weeks.
Basic: frame, envelope, roofing, windows/doors.
Standard: + in-building MEP, screeds/drywall.
Turnkey: full finishes and commissioning.

Export & Logistics
Deliveries across Ukraine and EU. Full documentation package, site supervision/install teams.

How to order
Send your preferred layout/site data — we’ll prepare a quote and 3D visuals.
